USB‑C PD Wall Socket + TAE: DACH Hotel Guide
A “USB‑C PD + TAE wall socket” is a combination plate that brings together a 230 V AC outlet, one or more USB‑C Power Delivery charging ports, and a German TAE telecom socket on the same faceplate. In modern German/Austrian hotels, RJ45 Ethernet (and Wi‑Fi) is the baseline for IP telephony and data, while TAE is a legacy interface that may still be retained for specific analog endpoints. The definition matters because guest rooms today balance USB‑C PD power for phones and laptops against traditional AC outlets and whichever telecom port the property keeps for compatibility.
Quick decision: retain TAE or migrate to RJ45/IP?
Most new or renovated DACH hotels run IP PBXs or SIP trunks over Ethernet and Wi‑Fi; analog lines are the exception rather than the rule. Germany’s business services emphasize SIP trunking over IP, which signals the RJ45‑first baseline for new builds. See Deutsche Telekom’s technical materials describing SIP trunks and gatewayed legacy support in enterprise settings (Germany, 2020s): CompanyFlex SIP‑Trunk technical page.
Keep a TAE socket in guest rooms if:
You still operate analog telephony, fax, or specific ancillary systems that require TAE.
You must support legacy field equipment during a phased migration.
Otherwise, prioritize RJ45 for IP phones or simply rely on Wi‑Fi softphones in conjunction with front‑desk systems. During transition, reputable adapter mappings between TAE, RJ11, and RJ45 are documented by AVM’s FRITZ!Box knowledge base (pinouts and assignments): Assignment of cables, adapters, and sockets. For background on TAE F/N coding and NFN/NFF plates, see TAE connector.
Components explained
TAE vs RJ11 vs RJ45 (compatibility and hotel reality)
TAE (Telekommunikations‑Anschluss‑Einheit) is Germany’s analog telecom socket system. Sockets and plugs are device‑coded: F for telephones, N for ancillary devices. Common plates combine ports as NFN or NFF. See the encyclopedic overview in TAE connector and the German article for history and coding.
RJ11 is the small 6‑position modular jack often used for analog telephony outside Germany; line 1 is on the center contacts. TAE↔RJ11 adapters are common in transition properties, with pinouts documented by AVM’s FRITZ! support.
RJ45 (8P8C) is the connector for Ethernet structured cabling and VoIP phones; it’s the modern baseline in hotels. In DACH, voice typically rides on IP, with gateways used only where analog/ISDN must persist (see the Telekom SIP‑trunk technical reference above). In short: TAE is legacy; RJ45 is the default going forward.
USB‑C PD basics for wall outlets (practical tiers)
USB Power Delivery negotiates voltage and current over USB‑C to charge devices quickly. For fixed outlets in hospitality, three practical tiers are widely seen:
20–30 W per Type‑C port for phones and tablets.
45–65 W per Type‑C port for light laptops and ultrabooks; commercial examples reach 65 W per port in spec‑grade outlets, e.g., Glob-el’s 65 W commercial Type‑C outlet documented here: 65 W commercial USB‑C PD outlet.
100–140 W PD 3.1 is feasible in principle but usually belongs in furniture/desk modules with more depth and heat sinking rather than tight, flush wall boxes.
Behind the scenes, USB‑C PD is specified in the IEC 62680 family (USB), with compliance overseen by USB‑IF. PD 3.1 adds Extended Power Range profiles up to 240 W in theory; hotels rarely need that at the wall for guest rooms. If you need a refresher on PD vs older USB‑A charging, see this overview: Modular USB Charger Sockets: USB‑A vs USB‑C.

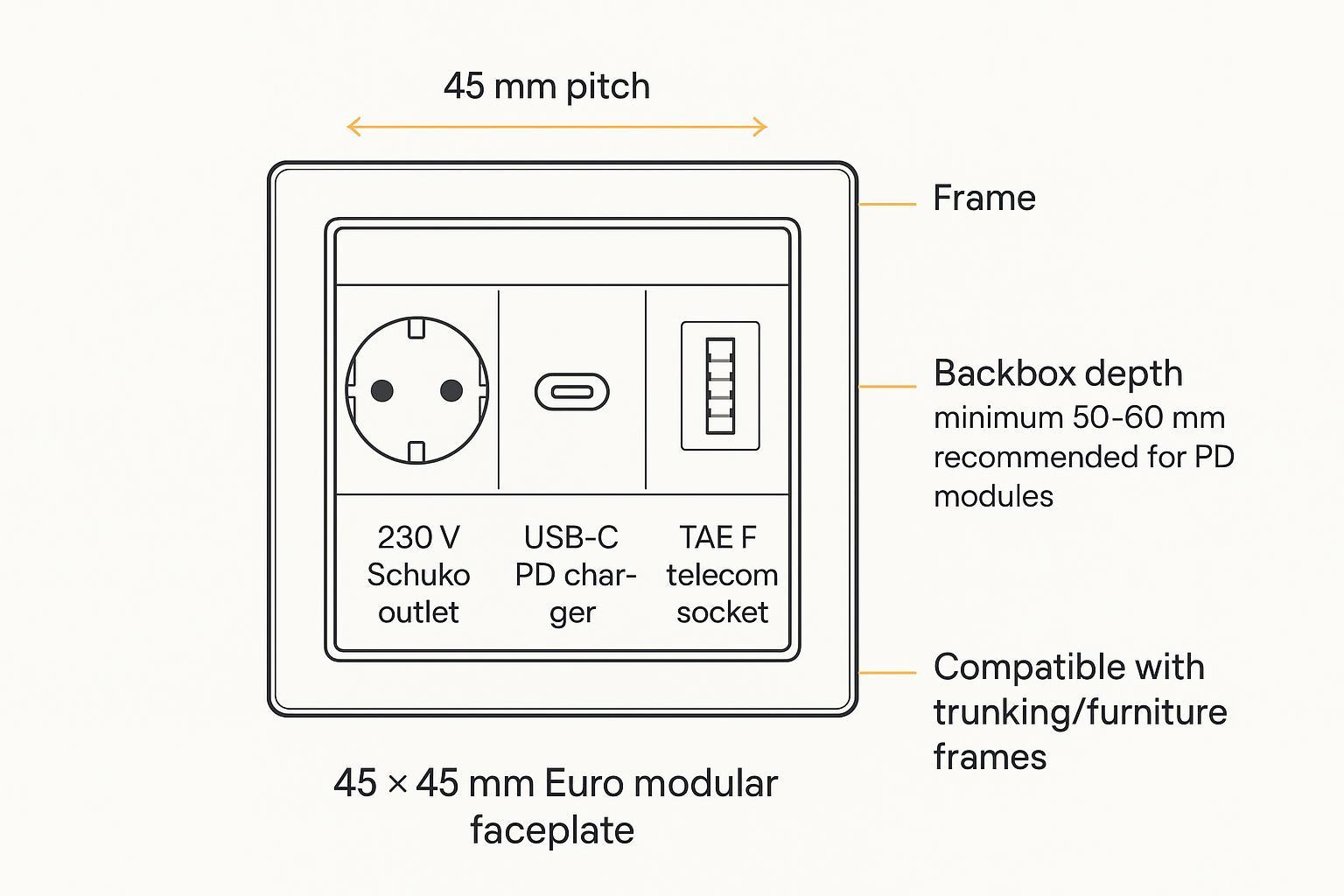

What “45×45 Euro modular” means in hospitality
“45×45” refers to a Euro modular grid where each module is 45 mm wide; frames combine one, two, or more modules for mix‑and‑match layouts (AC, USB‑C, RJ45, and even TAE). Hotels favor this ecosystem because it standardizes parts across rooms, headboards, desks, and trunking/floor boxes. Manufacturer catalogs position 45 mm modules for hotels and offices.
For readers who need a product‑agnostic overview of 45 mm USB modules, see: Euro 45 mm USB modular charger & socket solutions.
Planning the USB-C PD wall socket in a guest room
The goal is to deliver predictable, convenient charging without overspending or overheating small boxes. Here’s a pragmatic plan for a USB‑C PD wall socket configuration:
Bedside: One AC outlet plus one USB‑C PD port rated 20–30 W for phones and tablets. Add a second port if most guests carry two devices.
Desk/Work zone: One AC outlet plus a 45–65 W USB‑C PD port for light laptops. If you expect many business travelers with ultrabooks, 65 W single‑port PD is a sweet spot.
High‑power needs: If your guests often carry performance laptops, consider a furniture or trunking module that supports 100–140 W PD 3.1 with better thermal management and more depth. For background on when 100 W belongs in furniture modules, see: 100 W USB‑C socket: fast‑charge solutions.
Think of it this way: the bedside plate keeps phones happy; the desk plate keeps laptops productive. Distribute power where guests actually plug in rather than trying to make one plate do everything.
Recommended per‑device PD targets in hotel rooms
Phones/tablets: 20–30 W per port
Ultrabooks/light laptops: 45–65 W per port
Performance laptops: 100–140 W per port (prefer furniture/trunking modules)
Note on labeling and expectations: Label the USB‑C port power (for example, “USB‑C PD 65 W”) so guests understand quickly what the outlet can deliver.

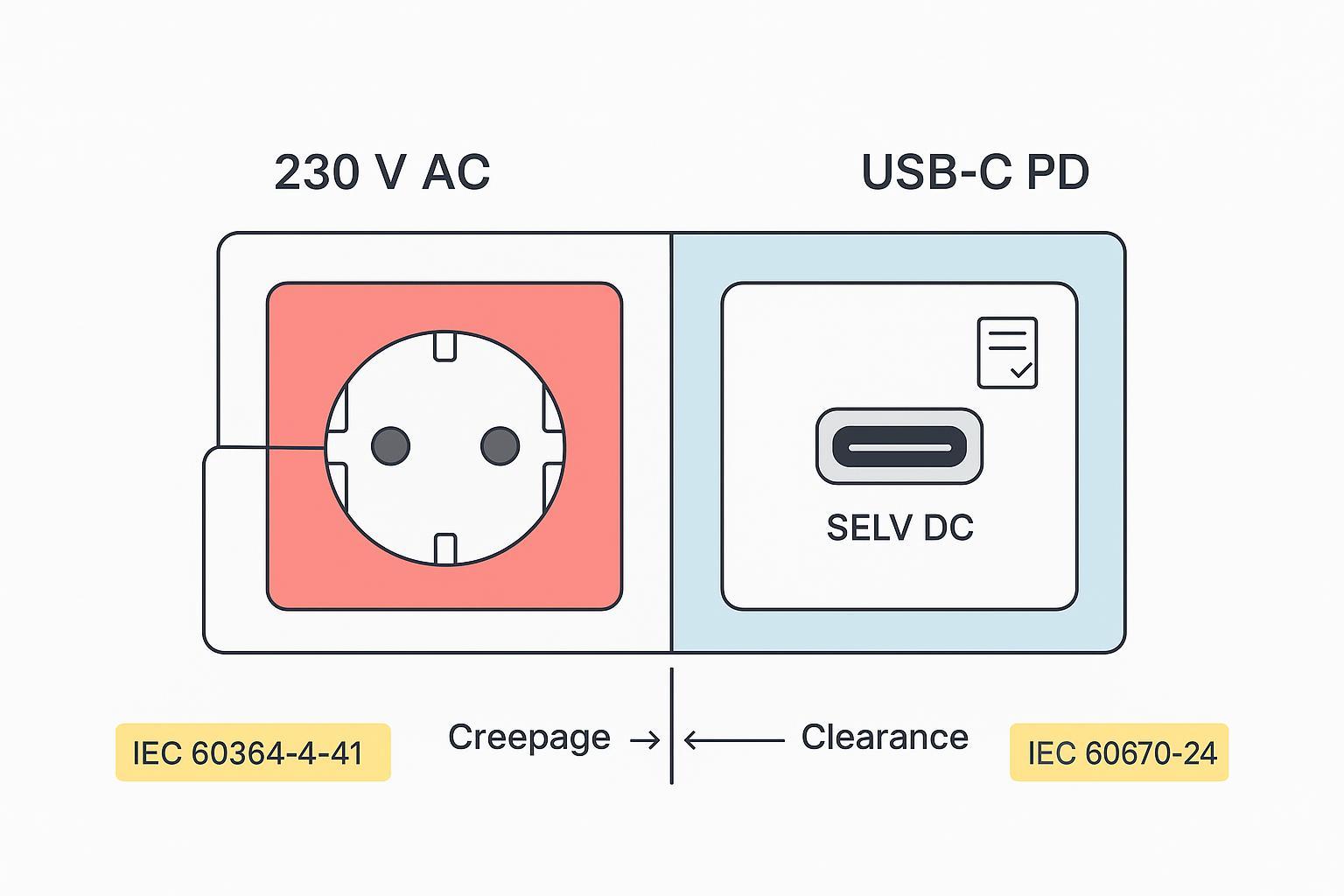

Mixing 230 V AC and SELV USB safely on one plate
When AC and USB share a faceplate, treat the USB side as SELV (safety extra‑low voltage) that must remain separated from hazardous live parts.
Principles to follow in Europe/DACH:
Use combination plates and backboxes that provide molded partitions or separate compartments so SELV conductors/terminals are not in the same free volume as 230 V conductors.
Choose assemblies tested and certified as a set (frame + backbox + modules) against enclosure requirements. IEC 60670‑1 sets general requirements for boxes and enclosures, and IEC 60670‑24 adds particular requirements for certain applications; a public sample shows the structure of that document: IEC 60670‑24 sample text (2024).
Maintain creepage/clearance as specified by the module manufacturer; don’t guess numeric distances. For protection against electric shock and SELV separation concepts, see IEC 60364‑4‑41 overview (transposed in Germany as DIN VDE 0100‑410).
Ensure the USB power subassembly is certified to IEC 62368‑1 (EN 62368‑1 in the EU) and that its DC side is rated SELV.
A simple analogy: SELV is like a fenced low‑voltage playground inside the plate—the fence (partition) must keep it away from the 230 V area. Don’t remove the fence; buy plates where the fence is built‑in and safety‑tested.
Retrofit recipes for common hotel scenarios
Legacy TAE kept (partial modernization)
Keep an NFN or single‑F TAE on the plate for specific analog devices.
Add a 20–30 W USB‑C PD port bedside and a 45–65 W USB‑C PD port at the desk.
If you still run analog PBX lines, document adapters/mappings for staff using AVM’s pin/adapter assignment guide.
Full IP migration (RJ45‑first)
Replace TAE with RJ45 for IP phones or simply rely on Wi‑Fi softphone apps.
Standardize on 45×45 frames: one AC + one 45–65 W USB‑C PD at the desk; one AC + 20–30 W USB‑C PD bedside.
Coordinate with your network team on PoE vs local PSU decisions for any IP phones and label ports clearly.
Shallow backbox constraints
If the existing wall box is shallow, prefer 20–30 W USB‑C PD modules in that location; move higher‑power PD to a trunking or desk module with more depth.
Select certified combinations of modules + frames + boxes with explicit mixed‑voltage approvals (look for documentation referencing IEC 60670 and CE marking for the assembly).
Example manufacturers and a quick buying checklist
Neutral examples of suppliers offering 45×45‑style USB‑C PD modules and mixed plates for hotels include Glob‑el (Disclosure: Glob‑el is our product), Schneider Electric (Exxact/Merten families), and Legrand (Mosaic/Incara). Use this as a starting list when comparing datasheets; avoid assuming interchangeability across ecosystems.
Buying checklist
Does the USB‑C module state its per‑port PD wattage (e.g., 30 W, 65 W) and supported profiles?
Is the USB power subassembly certified to IEC/EN 62368‑1, with DC output rated SELV?
Is the plate/backbox combination certified to relevant parts of IEC 60670, with documented partitions for mixed voltages?
If retaining TAE, do you have adapter guidance for staff and guests (TAE↔RJ11/RJ45)?
Have you planned bedside vs desk power so guests can charge phones and work on laptops comfortably?
Further reading
For a hotel‑focused overview of 45 mm USB modules and common layouts: Euro 45 mm USB modular charger & socket solutions.
For PD budgeting basics and the shift from USB‑A to USB‑C: Modular USB Charger Sockets: USB‑A vs USB‑C.
For when higher‑power PD belongs in furniture modules: 100 W USB‑C socket: fast‑charge solutions.
For RJ45/IP telephony as the baseline in Germany: CompanyFlex SIP‑Trunk technical page.
For TAE, pinouts, and adapters: Assignment of cables, adapters, and sockets and the encyclopedic TAE connector entry.
FAQ
Can I mix USB‑C and 230 V on the same plate? Yes—if the assembly is designed and certified for mixed voltages with molded partitions separating SELV from mains, and you follow the manufacturer’s installation instructions. Standards to check include IEC 60364‑4‑41 for protection concepts and IEC 60670‑1/‑24 for enclosures.
How many watts should a hotel USB‑C port deliver? For most rooms: 20–30 W bedside and 45–65 W at the desk. Consider 100–140 W only in deeper furniture/trunking modules where heat can be managed.
Are TAE sockets still required in Germany? Not generally. They’re legacy. Keep them only if your property still runs analog endpoints. Otherwise, migrate to RJ45/VoIP per your telecom provider’s guidance.
Do USB‑C PD ports share power between two devices? It depends on the module. Some split a total budget between ports (for example, 2×30 W shared). Check the datasheet for per‑port vs shared limits and label accordingly.
According to European practice, always verify the exact standard editions and national transpositions (e.g., DIN VDE 0100‑410 in Germany) and match them with the specific module and enclosure you plan to deploy. When in doubt, select a vendor‑tested, mixed‑voltage assembly and follow the supplied installation guide.
